The Revit Family

Creating a 3D model means you need the right tools for the job. All our families are designed to suit your needs, and can feature extra features such as parametric dimensions or integration with schedules. This means you can easily amend the sizes of elements of your model, and keep the clutter of multiple families down.

Examples of 3D Parametric Families/Blocks made by James Tuckett LTD

Pipe Stand Support.gif
Gate Valve.gif
Ultrasonic on Uni Strut.gif
Radial Tee.png
Floor Drain.png

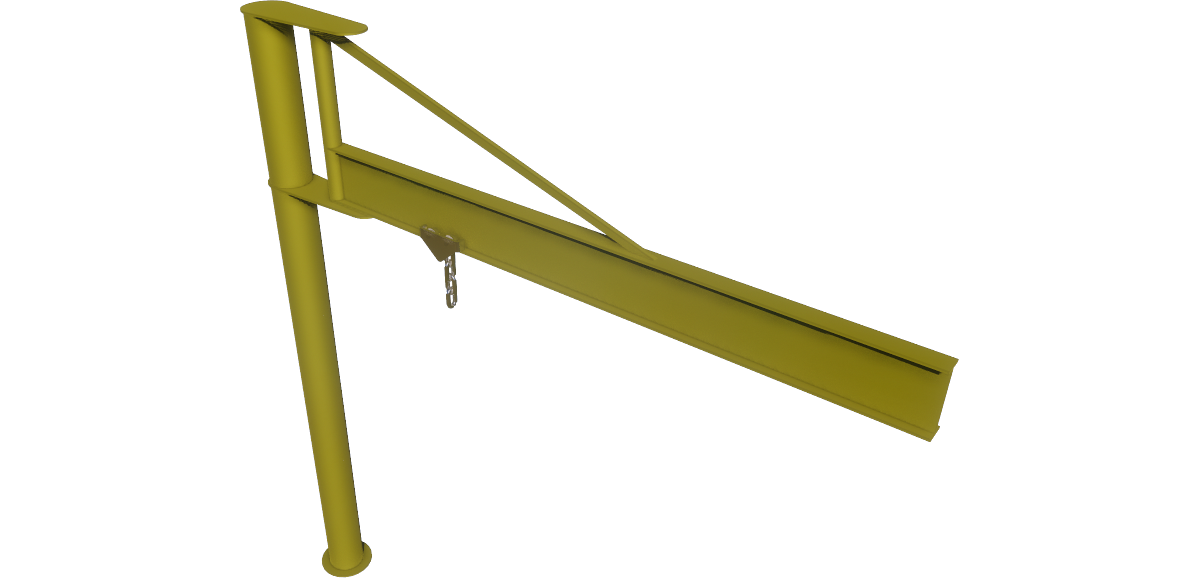

Jib Crane.png
Road Gully.png
Bottle Gully.png
Davit Socket.png
Fuel Tank.png
Flange Adaptor.png
D400 Cover.png
Manhole Ring.gif

Customised to suit.

Families can be constructed to be parametric, meaning dimensions of a 3D model can be changed simply by changing a number.

Details of families can be incorporated into schedules, to allow for quick summarising of information.

Properties Window.png

Radial Tee.png

If something catches your eye.

Existing supplier elements can be re-modelled into a format you can use, allowing you to be sure that what is detailed is possible, as well as allowing for the simplifying of procurement.

Pipe Support.png

Nothing is too complicated.

From the simple to the complex, we’re capable of producing all manner of elements.
